Code: DRI1K4H0B33030D

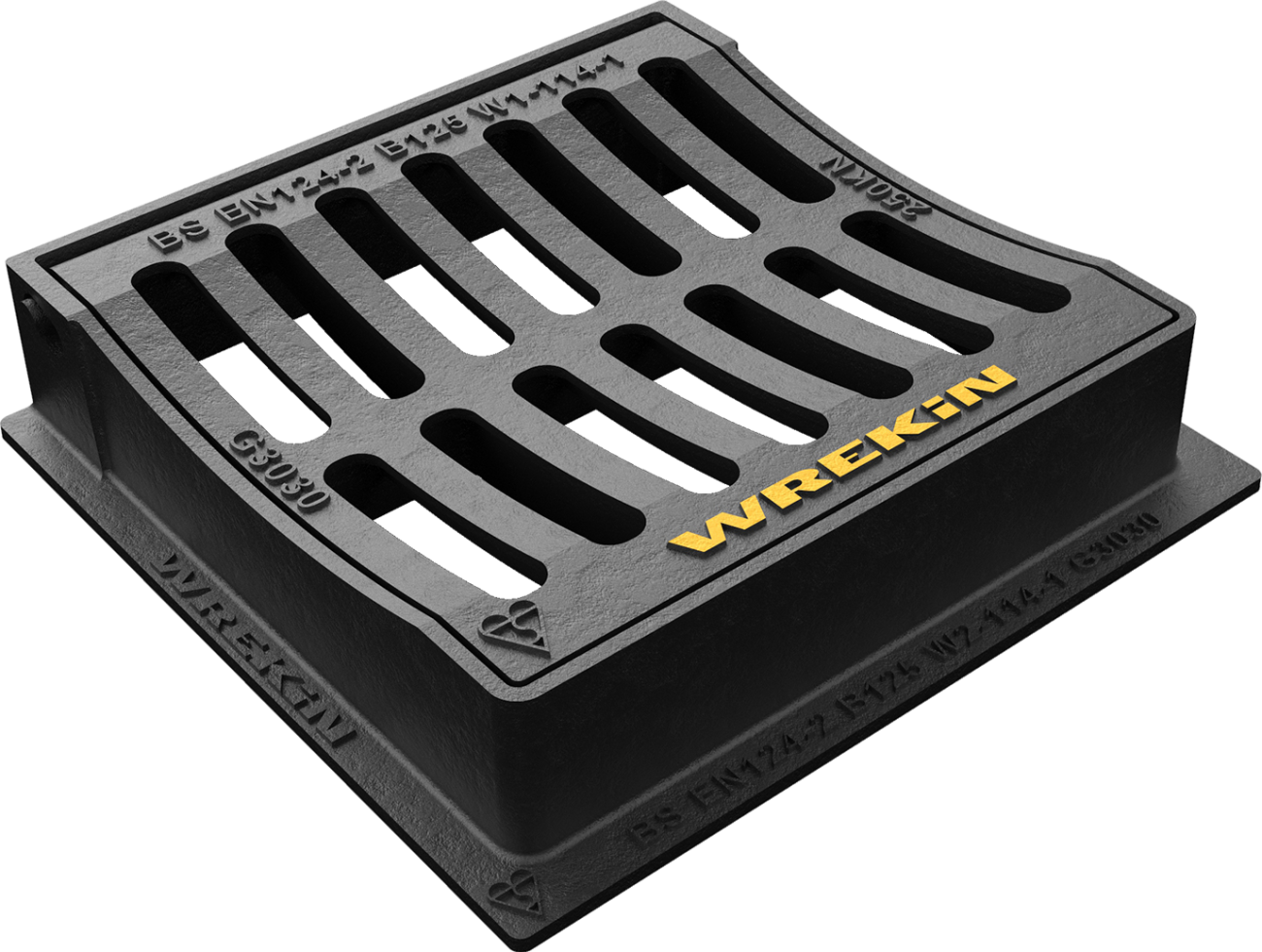

Tristar B125 3 flange dished gully grate 300mm x 300mm clear opening with 75mm frame depth
£40.22 Incl. VAT
Lichfield Stock:
In Stock
Tristar B125 3 flange dished gully grate 300mm x 300mm clear opening with 75mm frame depth.
Dimensions:
- Frame shape Rectangular
- Manhole shape Rectangular
- Overall frame (A x B) 355 mm x 345 mm
- Clear opening (C x D) 300 mm x 300 mm
- Frame depth (E) 75mm
- Base opening (F x G) 300 mm x 300 mm
- Dished depth (H) 15mm
- Waterway area 375cm²
Standards, classes and groupings:
- Standards BS EN 124-2
- BS EN 124 Class B125
- BS EN 124 Group 2
- Third party certified Kitemark
- CD 526 hydraulic capacity Out of Range
General Information:
- Stock code: DGH0B3/3030
- Primary material: Ductile iron
- Range: Tristar
- Category: Gully grate
- Flanges: 3
